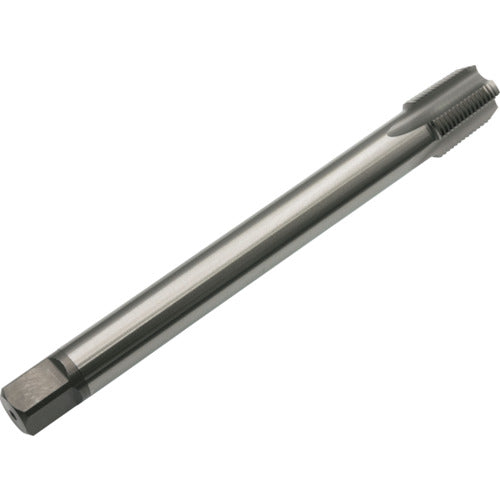

Yamawa Long Shank Pipe Taper Thread Short Thread Type LS-S-PT L200 1-11 LS-S-PT-200-1-11 1 Piece

Catalog number: LS-S-PT-200-1-11 Features: ●This product is primarily intended to improve the tightness of the threaded portion when connecting pipe parts, etc., and is a long shank tap used for threading when the fitting length needs to be shortened. Applications: ●Workpiece material: Medium carbon steel, high carbon steel, alloy steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1 ●Number of threads: 11 ●Thread length (mm): 35 ●Total length (mm): 200 ●Shank diameter (mm): 26 ●Shank square section (mm): 21 ●Pilot hole diameter (mm): 29.0 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated ●Length to reference diameter (mm): 22 ●Number of grooves: 5 grooves ●Number of grooves: 5 ●Length of shank square section: 24mm Material/Finish: ●High-speed tool steel (HSS)
