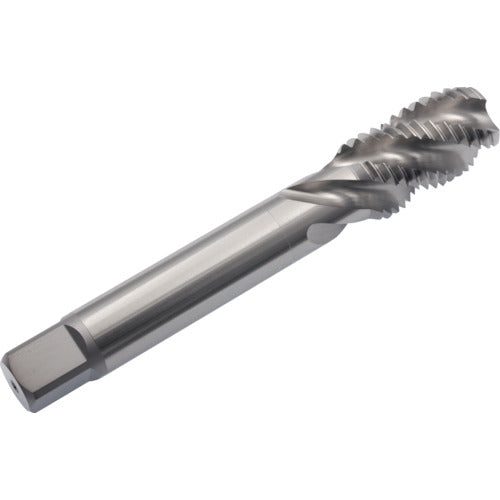

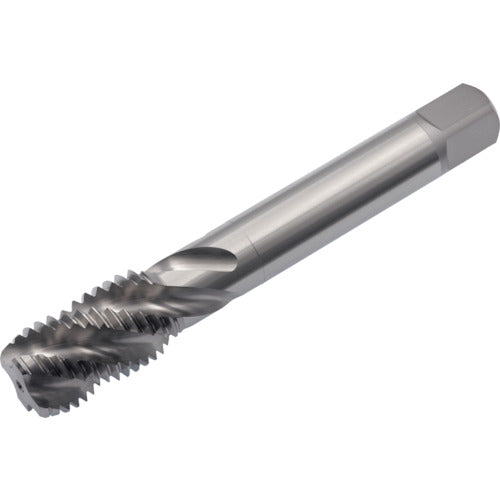

Yamawa Long Spiral Tap LS-SP L200 P3 3/4-16UNF LS-SP-P3-200-3/4-16UNF 1 piece

Catalog number: LS-SP-P3-200-3/4-16UNF Application: ●For blind hole machining. ●Workpiece material: Medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P grade ●Nominal dimensions: UNF3/4 ●Pitch (mm): 1.5875 ●Thread length (mm): 33 ●Total length (mm): 200 ●Shank diameter (mm): 15 ●Shank square section (mm): 12 ●Pilot hole diameter (mm): 17.59 ●Number of threads: 16 ●Number of engaging threads: 2.5 threads ●Machined thread: Unified thread ●Surface treatment: Non-coated ●Number of grooves: 4 Material/Finish: ●High-speed tool steel (HSS)
