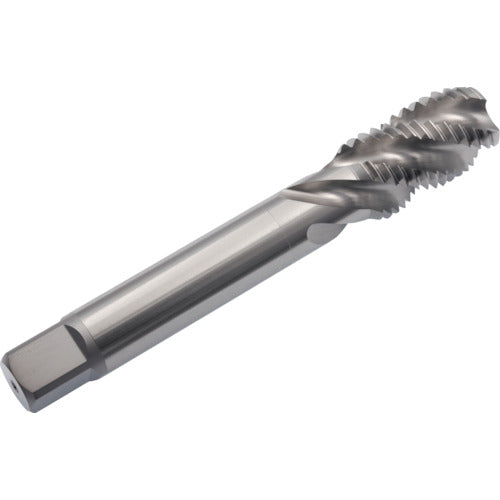

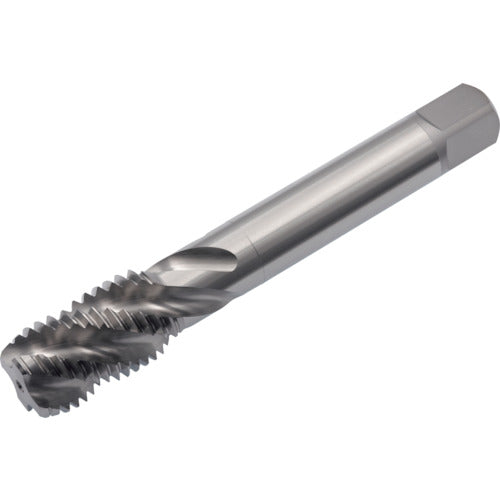

Yamawa Long Spiral Tap LS-SP L200 P3 M24X1.5 LS-SP-P3-200-M24X1.5 1 piece

Catalog number: LS-SP-P3-200-M24X1.5 Features: ●Long spiral tap for blind holes that can be used to machine deeper threads. Applications: ●For blind hole machining. ●Workpiece material: Medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: M24 ●Pitch (mm): 1.5 ●Thread length (mm): 39 ●Total length (mm): 200 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 22.6 ●Number of engagement threads: 2.5 threads ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 4 ●Long spiral tap for blind holes Material/Finish: ●High-speed tool steel (HSS)
