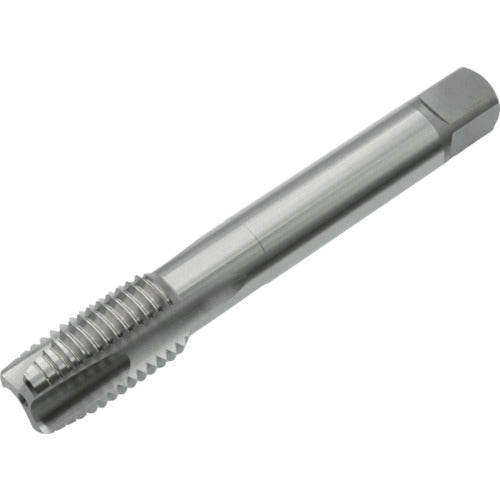

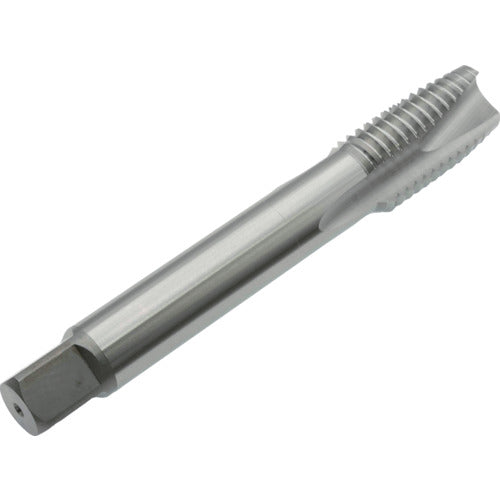

Yamawa Long Point Tap LS-PO L200 P4 1-12UNF LS-PO-P4-200-1-12UNF 1 piece

Catalog number: LS-PO-P4-200-1-12UNF Features: ●Long point tap for through holes suitable for deep hole threading. Applications: ●For through hole processing. ●Work material: Medium carbon steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: UNF1 ●Pitch (mm): 2.1167 ●Thread length (mm): 39 ●Total length (mm): 200 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 23.5 ●Number of threads: 12 ●Number of engaging threads: 5 threads ●Machined thread: Unified thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High speed tool steel (HSS)
