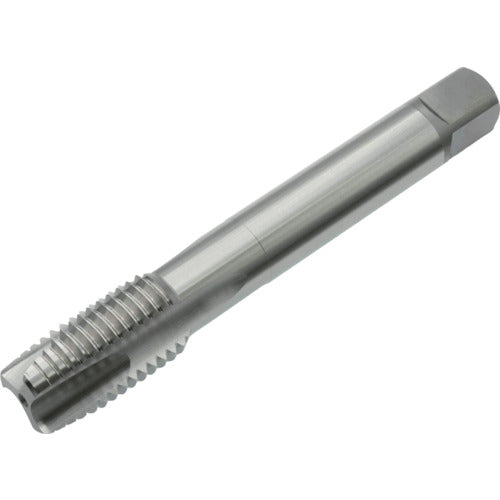

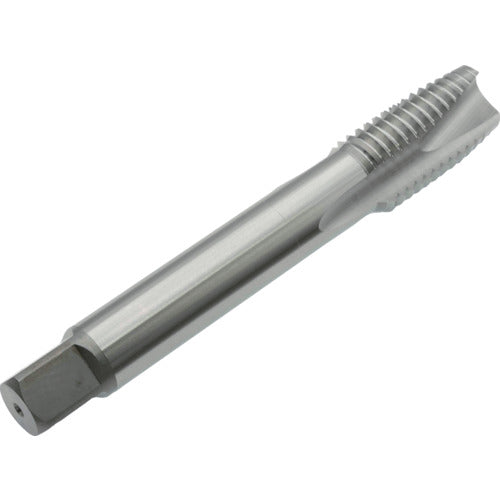

Yamawa Long Point Tap LS-PO L200 P4 7/8-9UNC LS-PO-P4-200-7/8-9UNC 1 piece

Catalog number: LS-PO-P4-200-7/8-9UNC Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Work material: Medium carbon steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal dimensions: UNC7/8 ●Thread length (mm): 33 ●Total length (mm): 200 ●Shank diameter (mm): 17 ●Shank square section (mm): 13 ●Pilot hole diameter (mm): 19.6 ●Number of threads: 9 ●Number of engaging threads: 5 ●Machined thread: Unified thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High speed tool steel (HSS)
