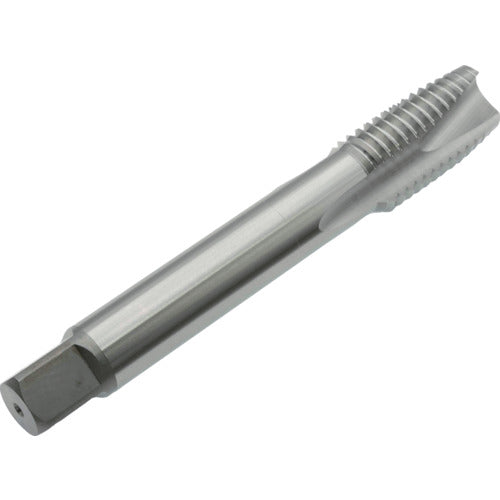

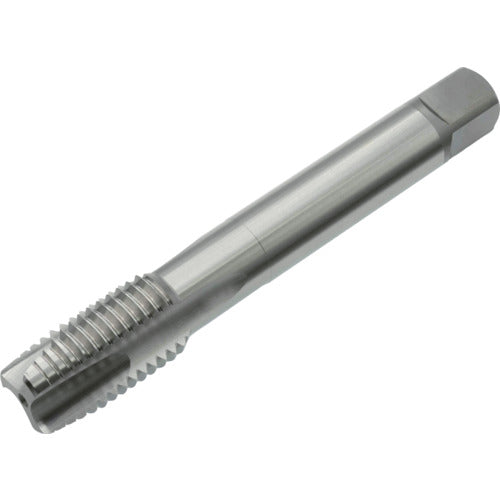

Yamawa Long Point Tap LS-PO L200 P4 M20X2 LS-PO-P4-200-M20X2 1 piece

Catalog number: LS-PO-P4-200-M20X2 Features: ●Long point tap for through holes suitable for threading deep holes. Applications: ●For through hole machining. ●Work material: Medium carbon steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M20 ●Pitch (mm): 2 ●Thread length (mm): 33 ●Total length (mm): 200 ●Shank diameter (mm): 15 ●Shank square section (mm): 12 ●Pilot hole diameter (mm): 18.1 ●Number of engagement threads: 5 ●Machined thread: Metric thread ●Surface treatment: Non-coated ●Number of grooves: 3 Material/Finish: ●High speed tool steel (HSS)
