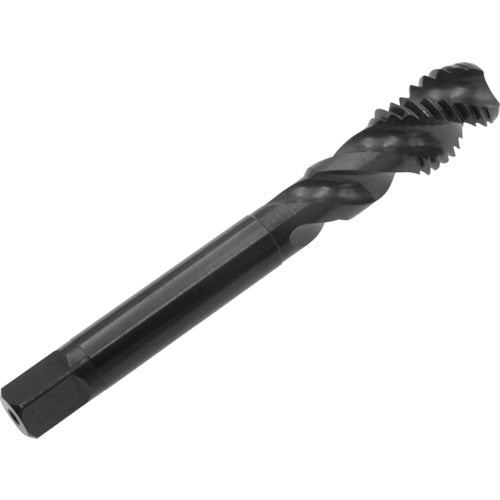

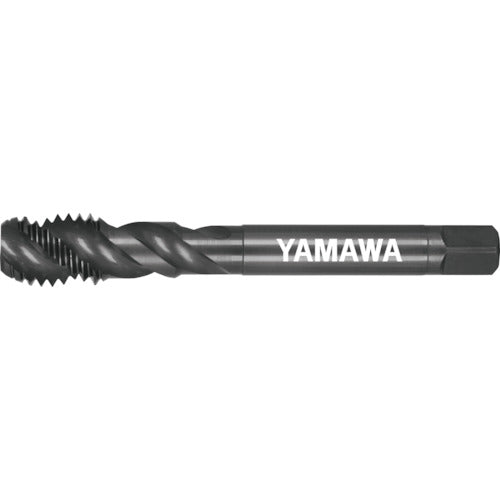

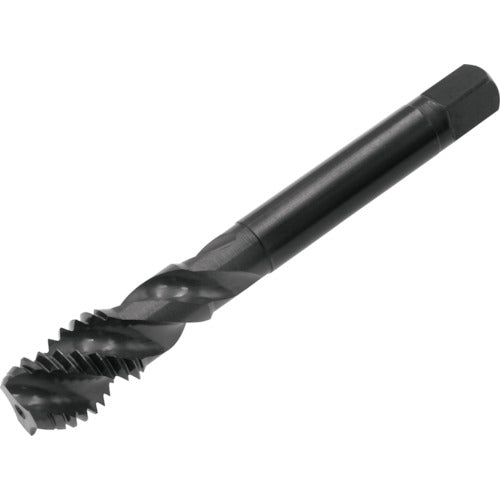

Yamawa Deep Hole Short Spiral Tap S-SP P2 M16X1.5 S-SP-M16X1.5 1 piece

Catalog number: S-SP-M16X1.5 Features: ● Good cutting performance, especially suitable for tapping deep blind holes. Applications: ● For blind hole processing. ● Work material: medium and high carbon steel, alloy steel, tough cast iron. Specifications: ● Precision: P2 ● Precision notation: P class ● Nominal size: M16 ● Pitch (mm): 1.5 ● Thread length (mm): 14 ● Total length (mm): 95 ● Shank diameter (mm): 12.5 ● Shank square section (mm): 10 ● Pilot hole diameter (mm): 14.60 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 3 ● Tap grade: P class Material/Finish: ● High speed tool steel (HSS)
