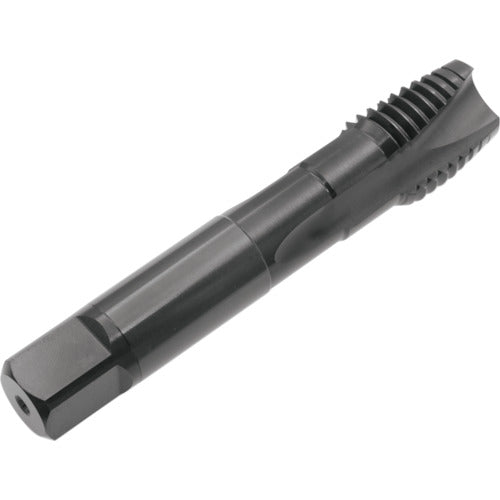

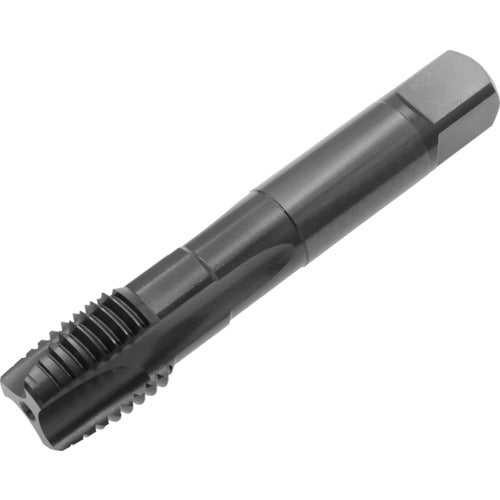

Yamawa Deep Hole Short Point Tap S-PO P4 M24X3 S-PO-P4-M24X3 1 piece

Catalog number: S-PO-P4-M24X3 Features: ●The short length of the threaded portion reduces frictional resistance and improves the supply of cutting oil, making this a point tap that is effective for deep thread machining that is 2.5 times or more the nominal diameter. Applications: ●For through hole machining. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel. Specifications: ●Accuracy: P4 ●Accuracy notation: P class ●Nominal size: M24 ●Pitch (mm): 3 ●Thread length (mm): 25 ●Total length (mm): 120 ●Shank diameter (mm): 19 ●Shank square section (mm): 15 ●Pilot hole diameter (mm): 21.1 ●Number of engagement threads: 5 ●Machining thread: Metric thread ●Surface treatment: Oxidation treatment ●Number of grooves: 3 ●Shank length: 55mm ●Shank square section length: 18mm Material/Finish: ●High speed tool steel (HSS)
