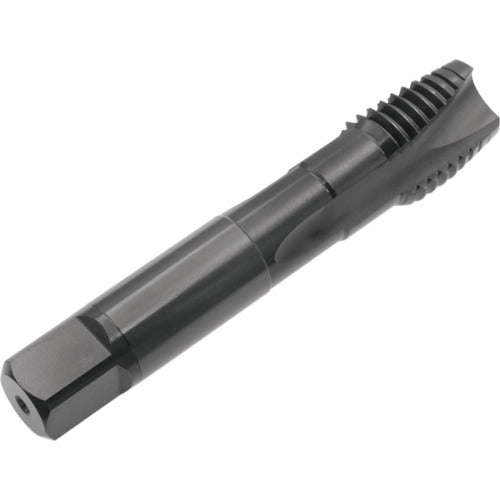

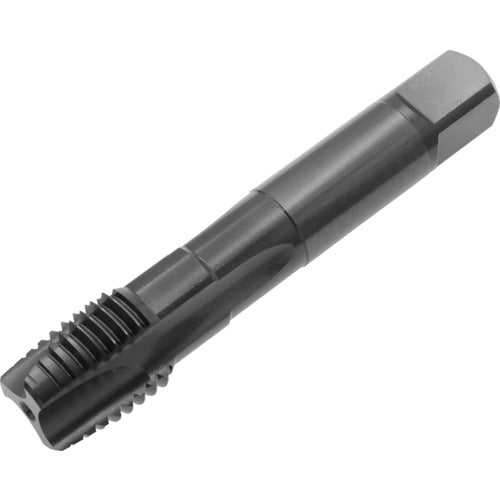

Yamawa Deep Hole Short Point Tap S-PO P5 M36X4 S-PO-P5-M36X4 1 piece

Catalog number: S-PO-P5-M36X4 Features: ●The short length of the threaded portion reduces frictional resistance and improves the supply of cutting oil, making this a point tap that is effective for deep thread machining that is 2.5 times or more the nominal diameter. Applications: ●For through hole machining. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel. Specifications: ●Accuracy: P5 ●Accuracy notation: P class ●Nominal size: M36 ●Pitch (mm): 4 ●Thread length (mm): 40 ●Total length (mm): 155 ●Shank diameter (mm): 28 ●Shank square section (mm): 21 ●Pilot hole diameter (mm): 32.1 ●Number of engagement threads: 5 ●Machining thread: Metric thread ●Surface treatment: Oxidation treatment ●Number of grooves: 4 ●Shank length: 71mm ●Shank square section length: 24mm Material/Finish: ●High speed tool steel (HSS)
