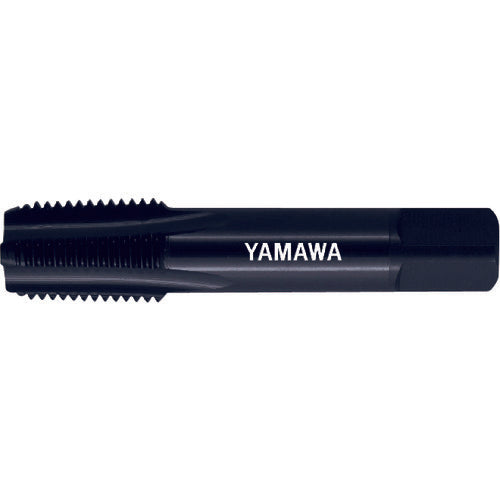

Yamawa Hand Tap for Pipe Taper Threads, Low Carbon Steel, Short Thread Type, LC-S-PT 1-11 LC-S-PT-1-11 1 Piece

Catalog number: LC-S-PT-1-11 Features: ●Short thread tap suitable for threading of mild steel (low carbon steel) such as SS400 and S30C. Applications: ●Workpiece: Low carbon steel, cast steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1 ●Number of threads: 11 ●Thread length (mm): 35 ●Total length (mm): 95 ●Shank diameter (mm): 26 ●Shank square section (mm): 21 ●Pilot hole diameter (mm): 29.0 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Oxidation treatment ●Length to reference diameter (mm): 22 ●Number of grooves: 5 grooves ●Number of grooves: 5 ●Length of shank square section: 24mm Material/Finish: ●High speed tool steel (HSS)
