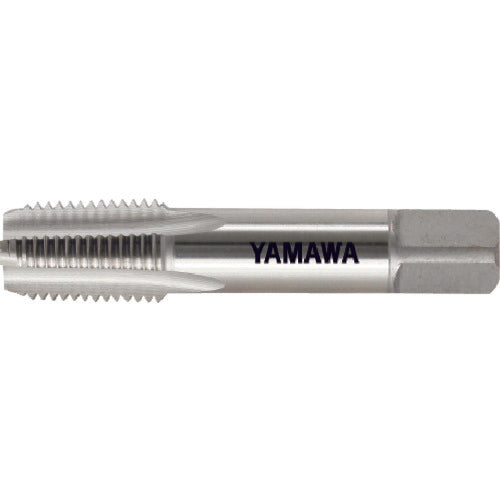

Yamawa Hand Tap for Cast Iron, for Taper Pipe Threads, Short Thread Type, FC-S-PT 1-1/4-11 FC-S-PT-1-1/4-11 1 Piece

Catalog number: FC-S-PT-1-1/4-11 Features: ●Short thread tap suitable for threading hard and brittle materials such as cast iron. Applications: ●Workpiece: Cast iron, tough cast iron. Specifications: ●Precision: JIS Class 2 ●Nominal size: 1 1/4 ●Number of threads: 11 ●Thread length (mm): 37.5 ●Total length (mm): 105 ●Shank diameter (mm): 32 ●Shank square section (mm): 26 ●Pilot hole diameter (mm): 37.6 ●Machined thread: Tapered thread ●Number of engaging threads: 2.5 ●Surface treatment: Nitriding treatment ●Length to reference diameter (mm): 24.5 ●Number of grooves: 5 grooves ●Number of grooves: 5 ●Length of shank square section: 30mm Material/Finish: ●High-speed tool steel (HSS)
