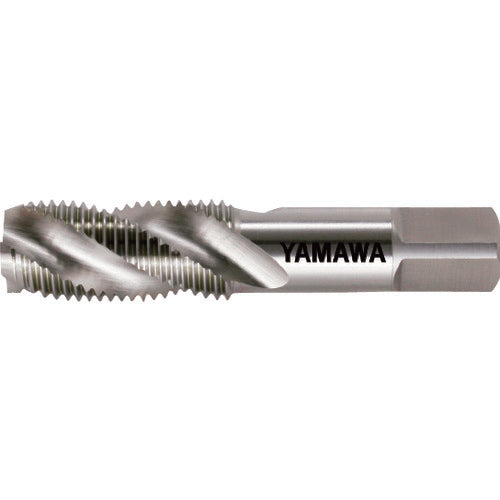

Yamawa Spiral Tap for Parallel Pipe Threads SP-PS 2-11 SP-PS-2-11 1 pc

Catalog number: SP-PS-2-11 Features: ●Spiral tap for parallel pipe threads used for threading products where the main purpose is to ensure the tightness of the threaded portion when connecting pipe parts, etc. ●The machined PS female thread is used to fit with the PT male thread. Applications: ●For blind hole machining. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ●Precision: JIS Class 2 ●Nominal size: 2 ●Thread length (mm): 50 ●Total length (mm): 120 ●Shank diameter (mm): 46 ●Shank square section (mm): 35 ●Pilot hole diameter (mm): 56.5 ●Number of threads: 11 ●Number of engagement threads: 2.5 threads ●Machined thread: Parallel pipe thread ●Surface treatment: Non-coated ●Number of grooves: 4 grooves ●Number of grooves: 4 ●Length of square shank section: 38mm Material/Finish: ●High speed tool steel (HSS)
