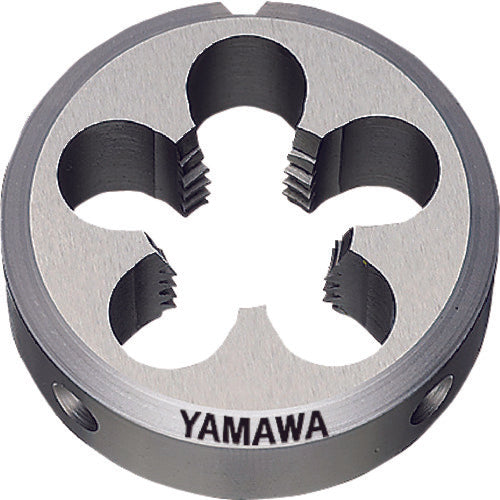

Yamawa Solid Die for Parallel Pipe Threads D PF 1/4-19 38 Diameter D-PF-1/4-19-38 1 pc

Catalog number: D-PF-1/4-19-38 Features: ●Solid die for PF male thread processing with improved die runout accuracy. Applications: ●Workpiece: Carbon steel, aluminum, brass. Specifications: ●Nominal size: 1/4 ●Number of threads: 19 ●Outer diameter (mm): 38 ●Thickness (mm): 13 ●Thread processing: Parallel pipe thread ●Thread processing: Parallel pipe thread ●Number of chip holes: 5 ●Number of engagement threads: 2.5 ●Surface treatment: Non-coated Material/Finish: ●High-speed tool steel (HSS) Caution: ●Cannot be used with stainless steel screws.
