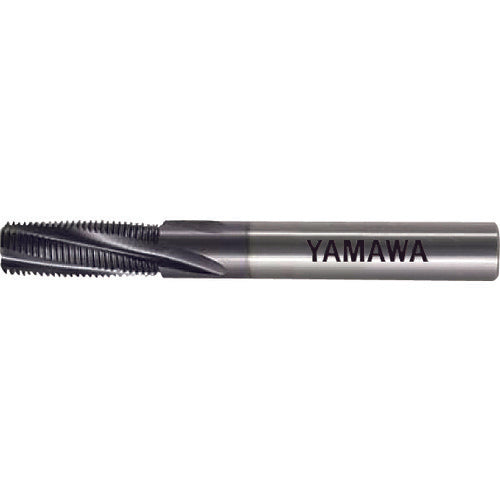

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 100254N200M MC-CSLC-100254N200M 1 Piece

Catalog number: MC-CSLC-100254N200M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 14 ● Pitch (mm): 2 ● Blade diameter (mm): 10 ● Blade length (mm): 25 ● Total length (mm): 90 ● Shank diameter (mm): 10 ● Minimum processing diameter: 14 ● Processing thread: Metric thread ● Thread length (mm): 25 Material/Finish: ● Ultra-fine particle cemented carbide (HF)
