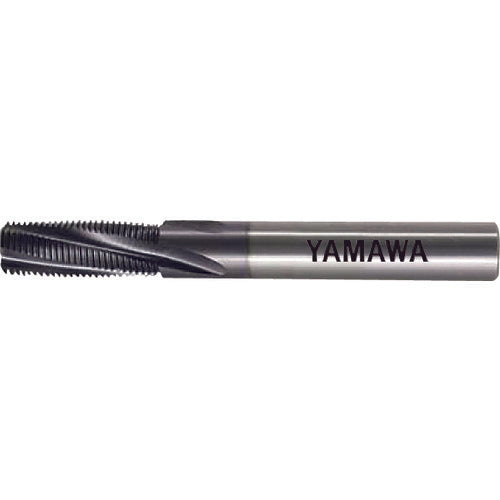

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 120304N200M MC-CSLC-120304N200M 1 Piece

Catalog number: MC-CSLC-120304N200M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 17 ● Pitch (mm): 2 ● Blade diameter (mm): 12 ● Blade length (mm): 30 ● Overall length (mm): 100 ● Shank diameter (mm): 12 ● Minimum processing diameter: 17 ● Thread length (mm): 30 ● Processing thread: Metric thread Material/Finish: ● Ultra-fine particle carbide alloy (HF)
