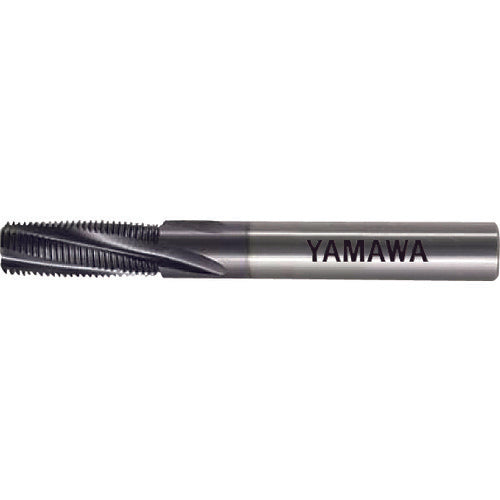

Yamawa Carbide MC-Helical Cutter for Metric Threads MC-CSLC 200505N150M MC-CSLC-200505N150M 1 Piece

Catalog number: MC-CSLC-200505N150M Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 28 ● Pitch (mm): 1.5 ● Blade diameter (mm): 20 ● Blade length (mm): 50 ● Overall length (mm): 140 ● Shank diameter (mm): 20 ● Minimum processing diameter: 28 ● Thread length (mm): 50 ● Processing thread: Metric thread Material/Finish: ● Ultra-fine particle cemented carbide (HF)
