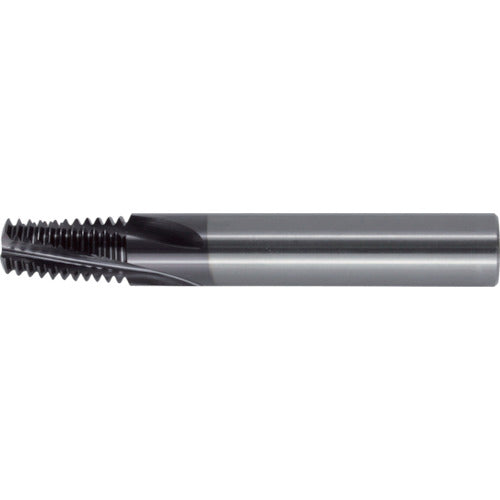

Yamawa Carbide MC-Helical Cutter for Pipe Taper Threads (Rc/PT) MC-CSLC 200305X11R MC-CSLC-200305X11R 1 piece

Catalog number: MC-CSLC-200305X11R Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 1~ ● Pitch (mm): 2.31 ● Number of teeth: 11 ● Blade diameter (mm): 20 ● Blade length (mm): 30 ● Total length (mm): 110 ● Number of blades (pieces): 5 ● Shank diameter (mm): 20 ● Minimum processing diameter: 1~ ● Processing thread: Pipe taper thread (Rc/PT) ● Thread length (mm): 30 Material/Finish: ● Ultra-fine particle carbide alloy (HF)
