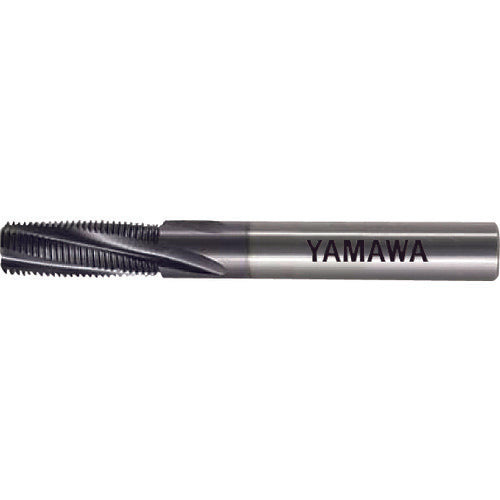

Yamawa Carbide MC-Helical Cutter for Pipe Parallel Threads (G/PF) (Rp/PS) MC-CSLC 160264X11G MC-CSLC-160264X11G 1 Piece

Catalog number: MC-CSLC-160264X11G Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process female threads of different diameters as long as the pitch is the same. ● Both right-handed and left-handed female threads can be processed. Specifications: ● Nominal size: 1~ ● Pitch (mm): 2.3 ● Number of teeth: 11 ● Blade diameter (mm): 16 ● Blade length (mm): 26 ● Total length (mm): 90 ● Number of blades (pieces): 4 ● Shank diameter (mm): 16 ● Minimum processing diameter: 1~ ● Thread length (mm): 26 ● Processing thread: Pipe parallel thread (G/PF) Material/Finish: ● Ultra-fine particle cemented carbide (HF)
