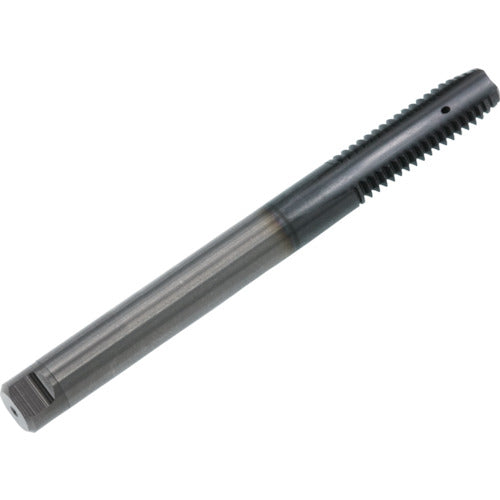

Yamawa Ultra-High Speed ​​Aluminum Through Hole Carbide Hand Tap HFACT-P P3 M6X1 HFACT-P-M6X1 1 Piece

Catalog number: HFACT-P-M6X1 Features: ● Carbide taps capable of ultra-high speed machining, with a side-through hole shape that supports internal lubrication, mist method, and low-temperature cooling dry machining method, making them suitable for through holes in aluminum castings and aluminum die castings. Applications: ● Workpiece: Aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: 4P ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: M6 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 62 ● Shank diameter (mm): 6 ● Pilot hole diameter (mm): 5.09 ● Machining thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Number of engagement teeth: 4 teeth
