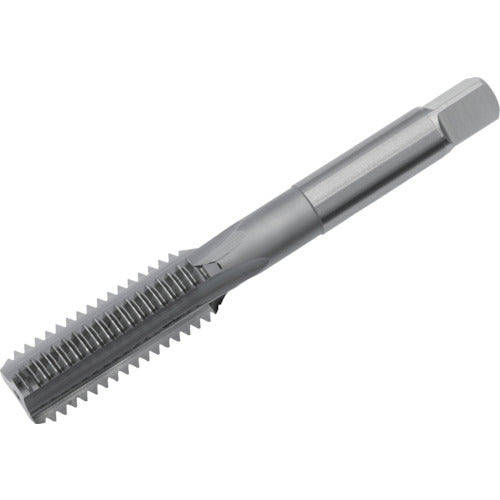

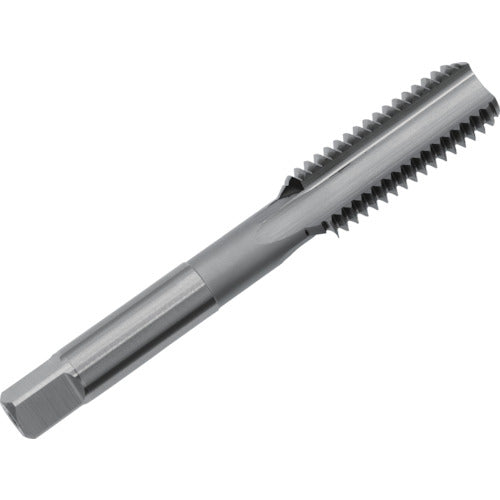

Yamawa Carbide Hand Tap for Light Alloys N-CT LA P3 M7X1 1.5P N-CT-LA-P3-M7X1-1.5P 1 piece

Catalog number: N-CT-LA-P3-M7X1-1.5P Features: ● Carbide tap suitable for thread machining of mass-produced products such as aluminum castings (AC), aluminum die castings (ADC), and zinc die castings (ZDC). Applications: ● Workpiece: Aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Top ● Precision: P3 ● Precision notation: P class ● Nominal dimensions: M7 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 65 ● Shank diameter (mm): 6.2 ● Shank square section (mm): 5 ● Pilot hole diameter (mm): 6.09 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 3 ● Number of engaging teeth: 1.5 teeth ● Carbide hand tap for light alloys Material/Finish: ● Ultra-fine grain carbide alloy (HF)
