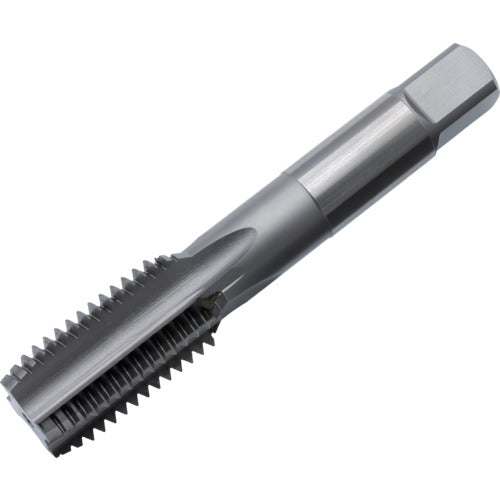

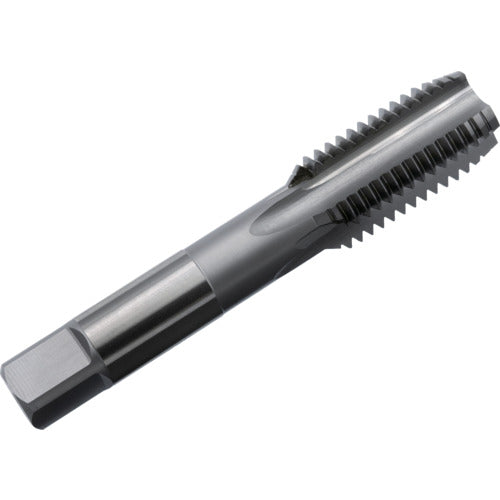

Yamawa Carbide Hand Tap for Light Alloys N-CT LA P4 M14X1 3P N-CT-LA-P4-M14X1-3P 1 piece

Catalog number: N-CT-LA-P4-M14X1-3P Features: ● Carbide tap suitable for thread machining of mass-produced products such as aluminum castings (AC), aluminum die castings (ADC), and zinc die castings (ZDC). Applications: ● Workpiece: Aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Medium ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: M14 ● Pitch (mm): 1 ● Thread length (mm): 19 ● Total length (mm): 70 ● Shank diameter (mm): 10.5 ● Shank square section (mm): 8 ● Pilot hole diameter (mm): 13.09 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 3 teeth ● Carbide hand tap for light alloys Material/Finish: ● Ultra-fine grain carbide alloy (HF)
