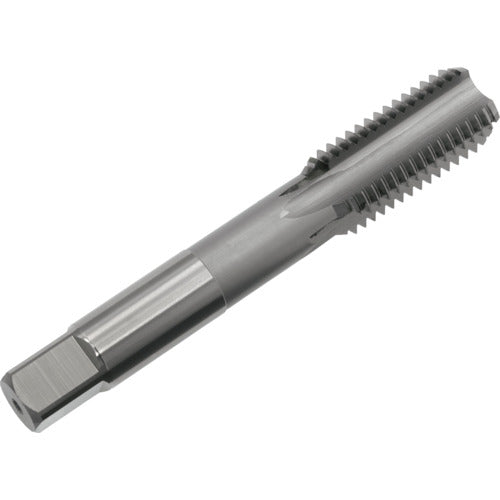

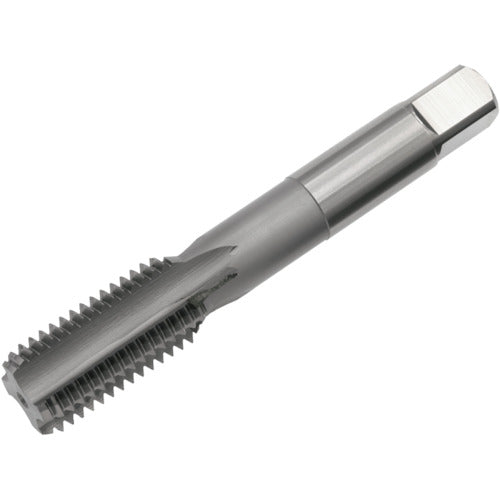

Yamawa Carbide Hand Tap for Light Alloys N-CT LA P4 M18X1.5 1.5P N-CT-LA-P4-M18X1.5-1.5P 1 piece

Catalog number: N-CT-LA-P4-M18X1.5-1.5P Features: ● Carbide tap suitable for thread machining of mass-produced products such as aluminum castings (AC), aluminum die castings (ADC), and zinc die castings (ZDC). Applications: ● Workpiece: Aluminum alloy castings, zinc alloy castings. Specifications: ● Tip: Top ● Precision: P4 ● Precision notation: P class ● Nominal dimensions: M18 ● Pitch (mm): 1.5 ● Thread length (mm): 24 ● Total length (mm): 95 ● Shank diameter (mm): 14 ● Shank square section (mm): 11 ● Pilot hole diameter (mm): 16.60 ● Machining thread: Metric thread ● Surface treatment: Non-coated ● Number of grooves: 4 ● Number of engaging teeth: 1.5 teeth ● Carbide hand tap for light alloys Material/Finish: ● Ultra-fine grain carbide alloy (HF)
