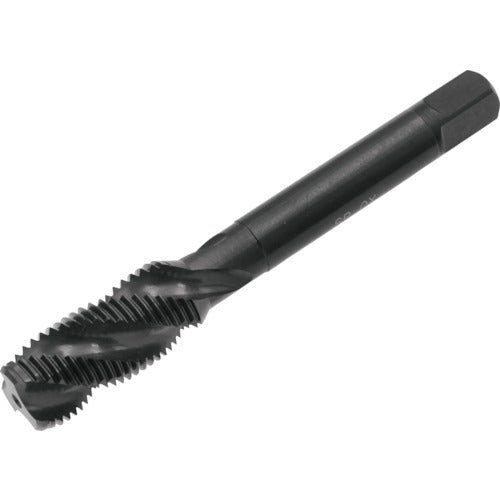

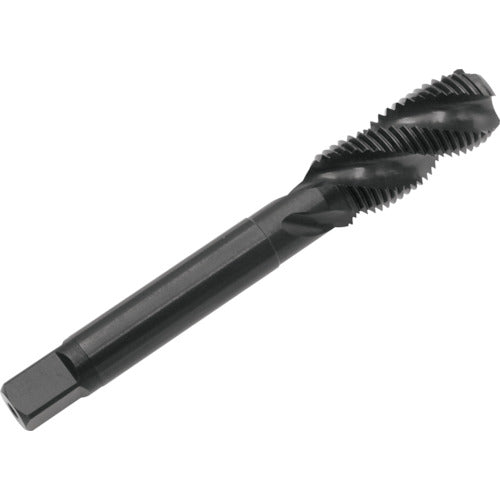

Catalog number: SP-OX-P2-M10X1 Features: ● A spiral tap for blind hole machining with oxidation treatment applied to the surface of the thread to prevent welding. ● Suitable for thread machining of soft steel materials such as low carbon steel that are easily welded. Applications: ● For blind hole machining. ● Workpiece material: Low carbon steel, medium carbon steel, high carbon steel. Specifications: ● Precision: P2 ● Precision notation: P class ● Nominal size: M10 ● Pitch (mm): 1 ● Thread length (mm): 23 ● Total length (mm): 75 ● Shank diameter (mm): 7 ● Shank square section (mm): 5.5 ● Pilot hole diameter (mm): 9.09 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 3 Material/Finish: ● High speed tool steel (HSS)
