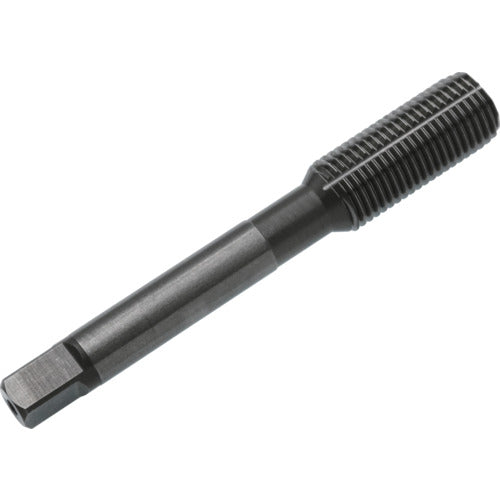

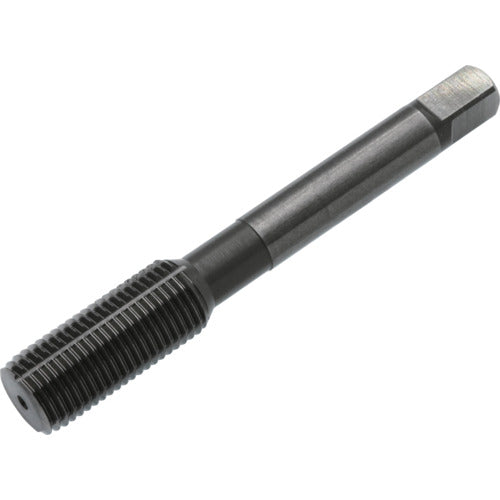

Yamawa Non-ferrous Roll Tap N-RS G7 M10X1 B N-RS-G7-M10X1-B 1 piece

Catalog number: N-RS-G7-M10X1-B Features: ●Roll tap suitable for thread machining of non-ferrous metals (aluminum castings, aluminum die castings, brass, etc.). Applications: ●For blind hole machining. ●Workpiece: rolled aluminum, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: G7 ●Accuracy notation: G grade ●Nominal size: M10 ●Pitch (mm): 1 ●Thread length (mm): 23 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 9.53 ●Number of engagement threads: 2 ●Thread machining: Metric thread ●Surface treatment: Nitriding treatment ●Non-ferrous roll tap Material/Finish: ●High speed tool steel (HSS)
