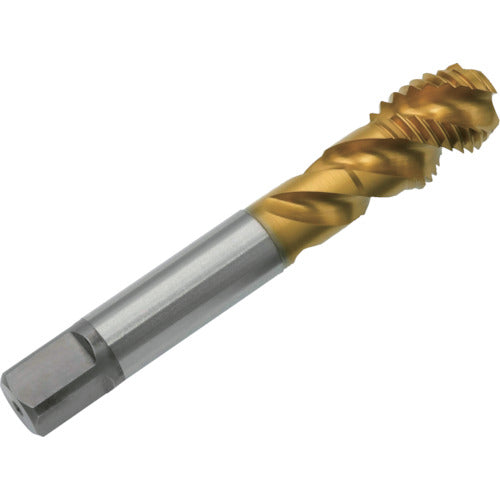

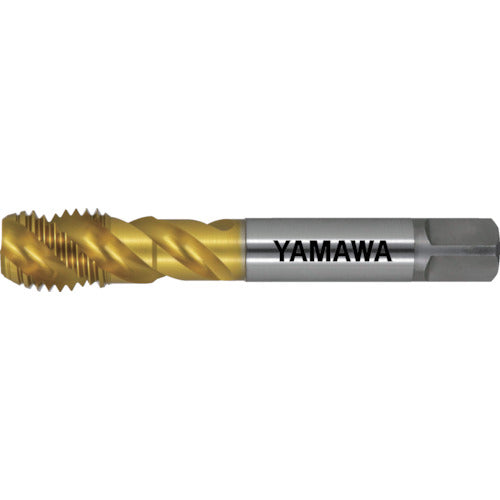

Yamawa High Speed ​​Spiral Tap F-SP P3 M10X1.25 F-SP-M10X1.25 1 piece

Catalog number: F-SP-M10X1.25 Features: ●High-speed machining is possible with machines equipped with a fully synchronized lead feed mechanism. ●The unique groove shape and short length of the threaded section allow for good chip removal. ●Using at low speeds can cause problems due to poor chip shape and removal. Applications: ●For blind hole machining. ●Workpiece: low carbon steel, medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: M10 ●Pitch (mm): 1.25 ●Thread length (mm): 13 ●Total length (mm): 75 ●Shank diameter (mm): 7 ●Shank square section (mm): 5.5 ●Pilot hole diameter (mm): 8.85 ●Number of engagement threads: 3 ●Machining thread: Metric thread ●Surface treatment: TiN coating ●Number of grooves: 3 ●Neck length (mm): 17 ●For fully synchronized lead feed machines only. Material/Finish: ●High-speed tool steel (HSS)
