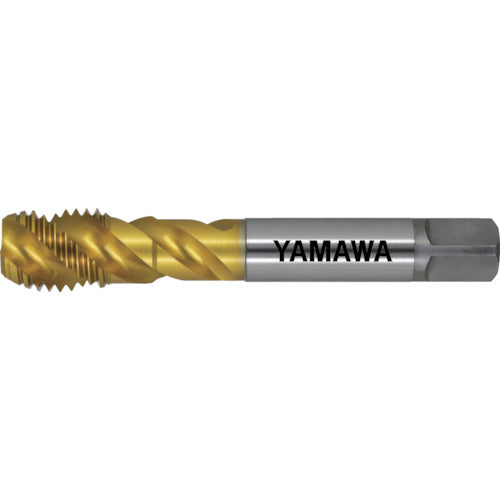

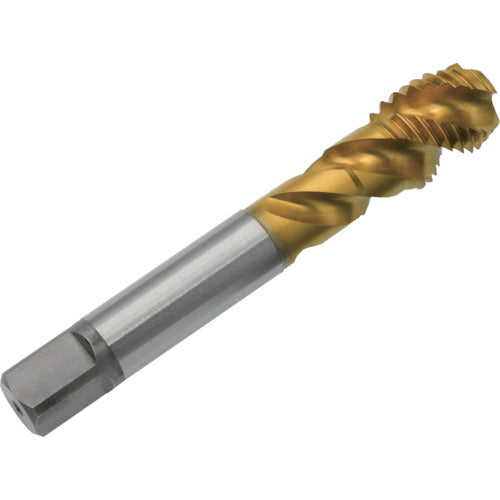

Yamawa High Speed ​​Spiral Tap F-SP P3 M12X1.5 F-SP-M12X1.5 1 piece

Catalog number: F-SP-M12X1.5 Features: ●High-speed machining is possible with a machine equipped with a fully synchronized lead feed mechanism. ●The unique groove shape and short length of the threaded section allow for good chip removal. ●Using at low speeds can cause problems due to poor chip shape and poor removal. Applications: ●For blind hole machining. ●Workpiece: low carbon steel, medium carbon steel. Specifications: ●Accuracy: P3 ●Accuracy notation: P class ●Nominal dimensions: M12 ●Pitch (mm): 1.5 ●Thread length (mm): 15 ●Total length (mm): 82 ●Shank diameter (mm): 8.5 ●Shank square section (mm): 6.5 ●Pilot hole diameter (mm): 10.60 ●Number of engagement threads: 3 threads ●Machining thread: Metric thread ●Surface treatment: TiN coating ●Number of grooves: 3 ●For fully synchronized lead feed machines only. Material/Finish: ●High-speed tool steel (HSS)
