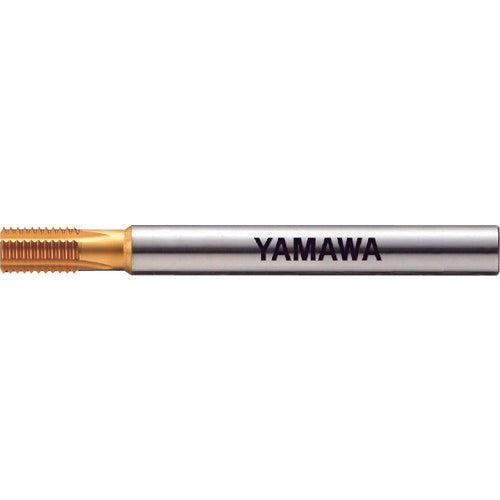

Yamawa MC-Helical Cutter for Parallel Pipe Threads (G/PF) (Rp/PS) MC-HLC 12204X14G MC-HLC-12204X14G 1 piece

Catalog number: MC-HLC-12204X14G Features: ● A thread processing tool that utilizes the "helical feed" function. ● One tool can process male and female threads of different diameters as long as the pitch is the same. ● It can also process both right-handed and left-handed threads. Specifications: ● Nominal size: 12204 x 14G ● Number of teeth: 14 ● Blade diameter (mm): 12 ● Blade length (mm): 20 ● Total length (mm): 80 ● Number of blades (pieces): 4 ● Shank diameter (mm): 12 ● Surface treatment: TiN coating ● Minimum machining female thread (Dmin): 1/2, 3/4 ● Thread type: Pipe parallel thread ● Thread type: Pipe parallel thread Material/Finish: ● High-speed tool steel: Cobalt high speed steel (HSS-Co)
