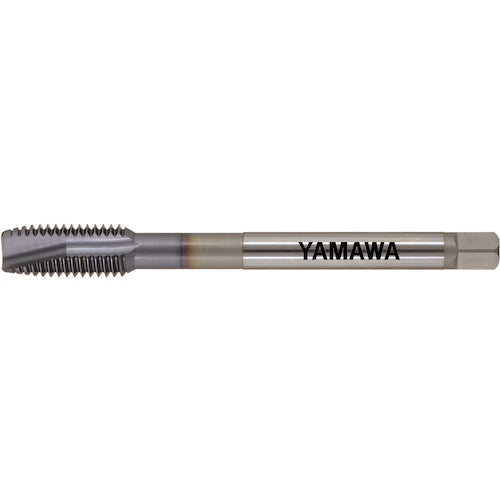

Yamawa Z-PRO Coated Point Tap VUPO L150 P4 M12X1.75 VUPO-150-P4-M12X1.75 1 piece

Catalog number: VUPO-150-P4-M12X1.75 Features: ●High-grade powder high-speed steel and special coating improve durability. ●The unique blade shape improves chip removal and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang ensures good supply of water-soluble cutting oil. ●Ideal for water-soluble cutting oil processing. Applications: ●For through hole processing. ●Workpiece material: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, tool steel. Specifications: ● Precision: P4 ● Precision notation: P grade ● Nominal dimensions: M12 ● Pitch (mm): 1.75 ● Thread length (mm): 26 ● Total length (mm): 150 ● Shank diameter (mm): 8.5 ● Square shank section (mm): 6.5 ● Counterbore diameter (mm): 10.4 ● Number of engagement threads: 5 threads ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Shank length (mm): 50 ● Length of square shank section (mm): 9 Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
