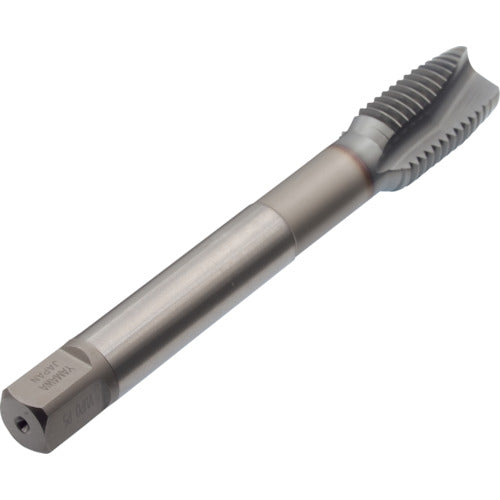

Yamawa Z-PRO Coated Point Tap VUPO P5 M24X3 VUPO-P5-M24X3 1 piece

Catalog number: VUPO-P5-M24X3 Features: ●High-grade powdered high-speed steel and special coating for improved durability. ●The unique blade shape improves chip removal and reduces cutting resistance, resulting in good internal threads and tool life. ●Proper tool overhang ensures good supply of water-soluble cutting oil. ●Ideal for water-soluble cutting oil processing. Applications: ●For through hole processing. ●Cutting materials: Low carbon steel, medium carbon steel, high carbon steel, alloy steel, stainless steel, tool steel. Specifications: ● Precision: P5 ● Precision notation: P grade ● Nominal dimensions: M24 ● Pitch (mm): 3 ● Thread length (mm): 37 ● Total length (mm): 160 ● Shank diameter (mm): 19 ● Square shank section (mm): 15 ● Counterbore diameter (mm): 21.1 ● Number of engagement threads: 5 ● Machined thread: Metric thread ● Surface treatment: TiCN coating ● Number of grooves: 3 ● Shank length: 82 mm ● Length of square shank section: 18 mm Material/Finish: ● High-speed tool steel: Powdered high speed steel (HSS-P)
