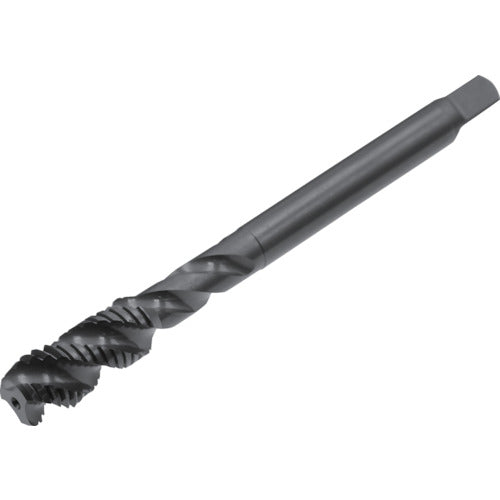

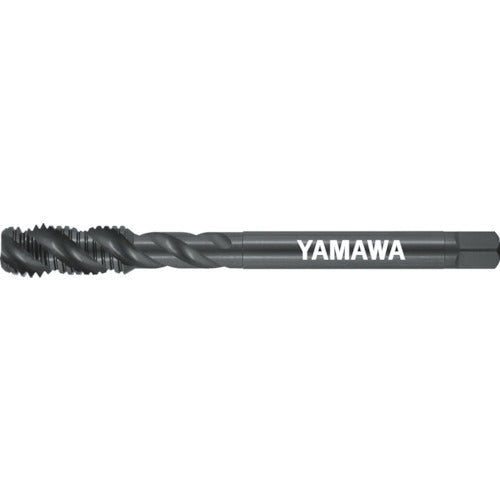

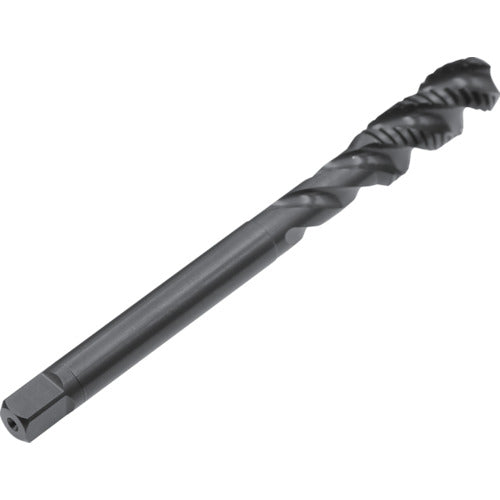

Yamawa Z-PRO Hybrid Value Spiral Tap for Steel HVSP P4 M14X2 HVSP-P4-M14X2 1 piece

Catalog number: HVSP-P4-M14X2 Features: ● Unique groove shape and cutting angle improve chip removal. ● Improved heel cut performance to accurately cut chips deep inside the thread and eliminate remaining chips. ● No remaining chips significantly reduces chipping problems at the biting part, which is prone to occur when reversing. ● A special shape is used for the thread part, leaving several complete threads and removing half of the threads thereafter, improving chipping prevention effect at the complete thread part. Applications: ● For blind hole machining. ● Work material: Stainless steel, low, medium and high carbon steel, alloy steel. Specifications: ● Precision: P4 ● Precision notation: P grade ● Nominal dimensions: M14 ● Pitch (mm): 2 ● Thread length (mm): 26 ● Total length (mm): 110 ● Shank diameter (mm): 10.5 ● Shank square section (mm): 8 ● Counterbore diameter (mm): 12.1 ● Number of engagement threads: 2.5 threads ● Machined thread: Metric thread ● Surface treatment: Oxidation treatment ● Number of grooves: 3 Material/Finish: ● High-speed tool steel (HSS)
