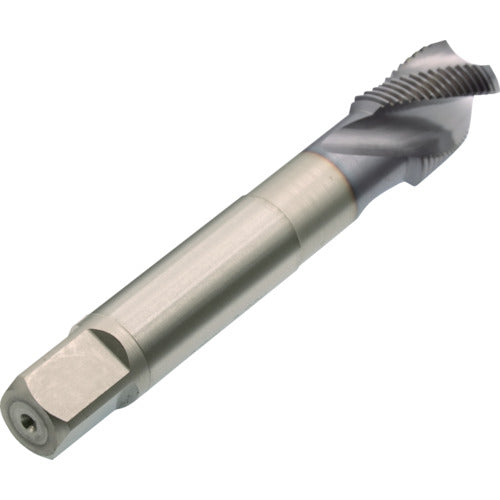

Yamawa Z-PRO Coated Spiral Tap for Pipe Taper Threads AUSP RC (PT) 1/16-28 AUSP-RC-1/16-28 1 piece

Catalog number: AUSP-RC-1/16-28 Features: ●The overall length is set to the appropriate tool overhang amount, preventing chips from interfering with the holder. ●The unique blade shape and special coating provide good internal thread surface and tool life. Applications: ●Cutting materials: Stainless steel, alloy steel, high carbon steel, medium carbon steel, low carbon steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: Conforms to ISO standards ●Nominal size: 1/16 ●Number of threads: 28 ●Thread length (mm): 14 ●Total length (mm): 90 ●Shank diameter (mm): 8 ●Shank square section (mm): 6 ●Pilot hole diameter (mm): 6.1 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Coating ●Length to reference diameter (mm): 10.1 ●Number of grooves: 3 Material/Finish: ●High-speed tool steel (HSS)
