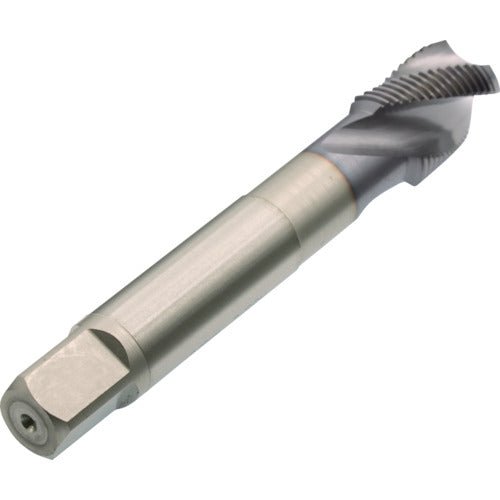

Yamawa Z-PRO Coated Spiral Tap for Pipe Taper Threads AUSP RC (PT) 3/4-14 AUSP-RC-3/4-14 1 piece

Catalog number: AUSP-RC-3/4-14 Features: ●The overall length is set to the appropriate tool overhang amount, preventing chips from interfering with the holder. ●The unique blade shape and special coating provide good internal thread surface and tool life. Applications: ●Cutting materials: Stainless steel, alloy steel, high carbon steel, medium carbon steel, low carbon steel, aluminum alloy castings, zinc alloy castings. Specifications: ●Accuracy: Conforms to ISO standards ●Nominal dimensions: 3/4 ●Number of threads: 14 ●Thread length (mm): 28 ●Total length (mm): 140 ●Shank diameter (mm): 23 ●Shank square section (mm): 17 ●Pilot hole diameter (mm): 23.0 ●Machined thread: Tapered thread ●Number of engagement threads: 2.5 ●Surface treatment: Coating ●Length to reference diameter (mm): 21.8 ●Number of grooves: 4 Material/Finish: ●High-speed tool steel (HSS)
