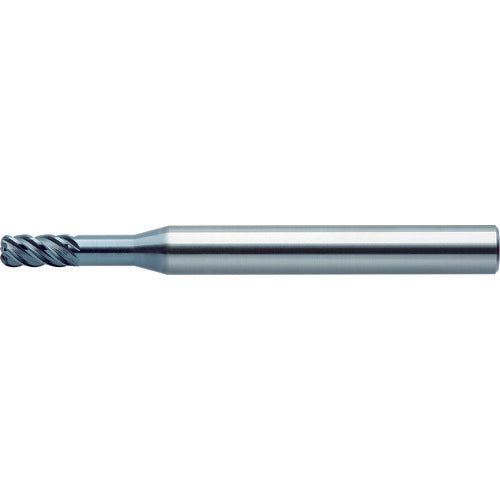

Union Tool Long Neck Radius Outer Diameter 8 x CR 0.5 x Effective Length 24 x Blade Length 16 CXLRS5080-05-24 1 piece

Catalog number: CXLRS5080-05-24 Features: ●Compatible with a wide range of work materials from carbon steel to hardened steel (55HRC)! ●Unequal spacing, unequal lead shape, and positive rake angle blade shape enable high-efficiency machining with side machining! ●Seamless corner R shape dramatically reduces cutting resistance! Uses: ●Cutting materials: carbon steel, alloy steel, pre-hardened steel, copper, hardened steel (up to 55HRC), cast iron, aluminum alloy, titanium alloy, super heat-resistant alloy Specifications: ●Corner radius (mm): R0.5 ●Blade length (mm): 16 ●Total length (mm): 70 ●Shank diameter (mm): 8 ●Number of blades (pieces): 5 ●Surface treatment: UT COAT ●Effective length (mm): 24 ●Number of blades: 5 ●Outer diameter (mm): 8 ●UTCOAT ●5 blades ●High-efficiency long-neck radius end mill CXLRS Material/Finish: ●SuperMG (ultrafine grain carbide alloy) Note: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check it. ●Please be careful of contact between the shank and the workpiece.
