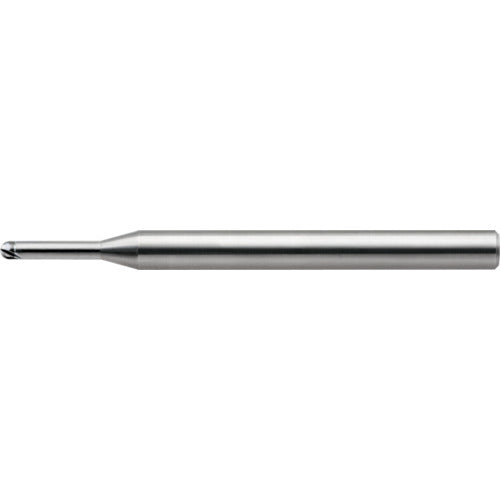

Union Tool 2-blade CBN high grade long neck ball R0.2 x effective length 1.0 x blade length 0.32 x total length 50 CBN-LBF2004-010 1 piece

Catalog number: CBN-LBF2004-010 Features: ● Adopts cBN material, which is ideal for machining high-hardness materials, and improves the blade shape to achieve high precision and long life. ● Excellent wear resistance and chipping resistance allow good machining surface roughness and precision to be maintained even during long-term machining. ● Ball R precision is ± 0.003 mm based on nominal R. ● * Nominal R is the standard: By inputting the ball radius R listed in the catalog directly into CAM, machining precision can be improved. ● High-precision shank diameter tolerance (0/-0.004 mm) is adopted. Applications: ● Workpiece: Hardened steel (up to 68HRC), pre-hardened steel. Specifications: ●Ball radius (mm): 0.2 ●Blade length (mm): 0.32 ●Total length (mm): 50 ●Shank diameter (mm): 4 ●Number of blades (pieces): 2 ●Number of blades: 2 ●Effective length: 1.0 ●CBN 2-blade high-grade long-neck ball end mill CBN-LBF Material/Finish: ●CBN Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and confirm. ●Please be careful of contact between the shank and the workpiece.
