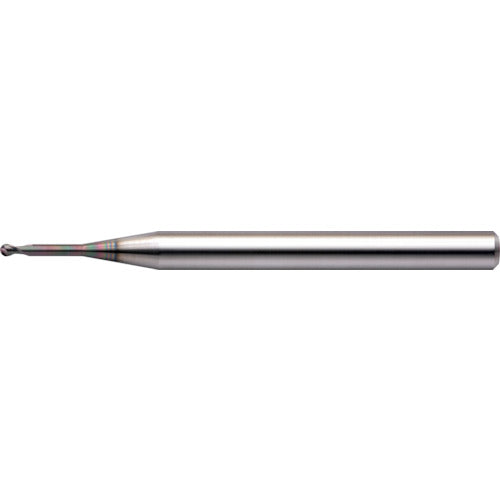

Union Tool V Series 2-blade DLC coated VDLCLB R0.05 x effective length 0.5 x blade length 0.08 x neck diameter 0.092 x total length 38.1 VDLCLB2001-005 1 piece

Catalog number: VDLCLB2001-005 Features: ●By utilizing the production know-how of PCB drills for drilling holes in electronic circuit boards, we have reduced the cost of φ3 shank (h4 tolerance) x total length 38 mm. Applications: ●Compatible workpiece materials: For copper and aluminum alloys. Specifications: ●Ball radius (mm): R0.05 ●Blade length (mm): 0.08 ●Total length (mm): 38.1 ●Shank diameter (mm): 3 ●Number of blades (pieces): 2 ●Number of blades: 2 ●Made in an ISO9001 certified factory ●Made in an ISO14001 certified factory Material/Finish: ●Super MG Caution: ●The shank taper angle is a guideline. ●If interference with the workpiece is required, be sure to measure it and check it. ●Be careful of contact between the shank and the workpiece.
