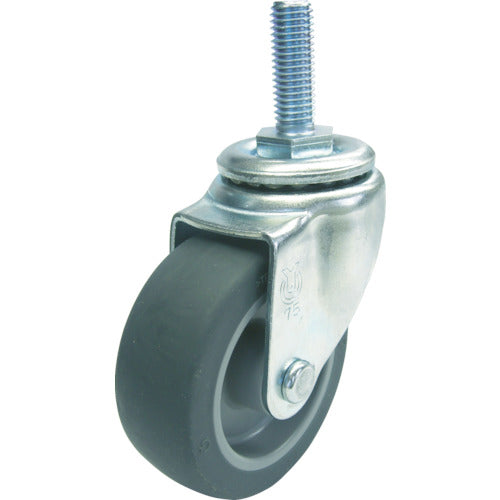

YUEI Screw-in type Swivel Caster Elastomer Wheel diameter 75mm S type ST type Screw size M12 x 35 Pitch 1.75 ST-75EL-M12-35 1 piece

Catalog number: ST-75EL-M12-35 Features: ●Standard small caster with excellent running performance and load capacity. Ideal for wagons and racks for transporting lightweight items. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 27 ●Mounting height H (mm): 97 ●Axle length L (mm): 35 ●Thread T: M12 ●Thread pitch (mm): 1.75 ●Allowable load (N): 500 ●Screw-in type ●Swivel type ●Mounting pipe thickness: Up to 1.8 mm possible Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
