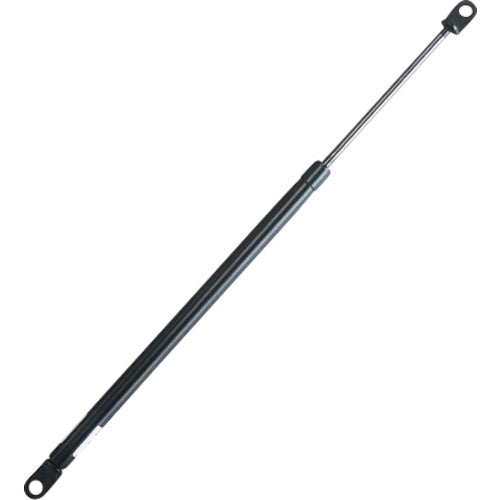

YUEI Gas Spring YCF Type YCF100294CC 1 Piece

Catalog number: YCF100294CC Features: ●Gas springs generate a constant spring force during a long compression stroke, making them ideal for opening and closing doors. ●They have a damping effect along with a spring action, allowing you to reliably control the opening and closing speed of doors. ●They are used as an aid when lifting or supporting heavy objects. Applications: ●For opening and closing lids and doors of cabinets and storage units. ●For raising and lowering chairs and tables. ●For opening and closing smoke exhaust windows, etc. Specifications: ●Stroke (mm): 100 ●Rebound force at full extension (N): 294 ●Rebound force at full contraction (N): 382 ●Maximum length (mm): 386 ●Minimum length (mm): 286 ●Rod diameter: 8mm ●Cylinder diameter: 18mm ●Gas spring type: Free piston ●Installation direction: 360° in all directions Material/Finish: ●Steel
