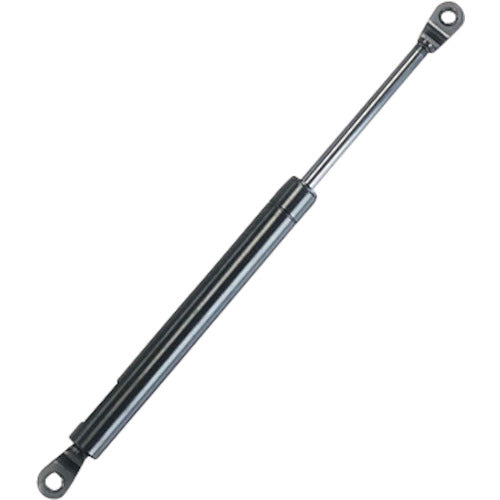

YUEI Gas Spring YEG Type Stroke 300mm Rebound Force 845N at Full Extension YEG300845AA 1 Piece

Catalog number: YEG300845AA Features: ●Gas springs have a lower spring constant than coil springs, so they can generate a nearly constant spring force over a long compression stroke, making them ideal for opening and closing doors. Applications: ●For opening and closing lids and doors of cabinets, storage units, etc. Specifications: ●Stroke (mm): 300 ●Rebound force at full extension (N): 845 ●Rebound force at full contraction (N): 1416 ●Maximum length (mm): 700 ●Minimum length (mm): 400 ●Rod diameter: 12.5 mm ●Cylinder diameter: 22 mm ●Gas spring type: All gas ●Installation direction: 60° Material/Finish: ●Steel
