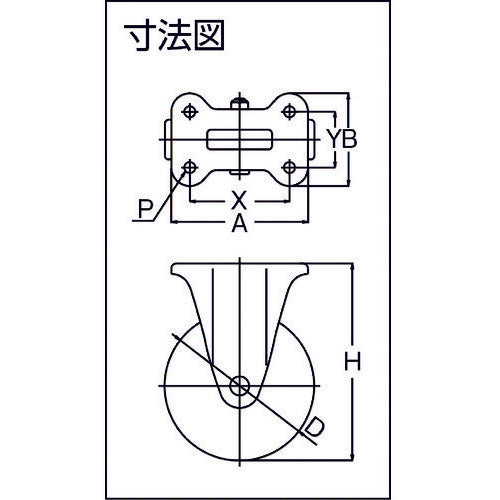

Catalogue number: PMR-130UWBINJ Features: ● Unique design achieves a travel distance three times longer than that of general U-EI casters. ● Running costs can be significantly reduced by reducing the number of replacements. Applications: ● For carts for moving heavy objects easily. Specifications: ● Wheel diameter D (mm): 130 ● Type: Fixed type ● Allowable load (daN): 250 ● Allowable load (kgf): 255 ● Wheel width (mm): 130 ● Mounting height H (mm): 177 ● Mounting seat A (mm): 137 ● Mounting seat B (mm): 93 ● Mounting pitch X (mm): 100 ● Mounting pitch Y (mm): 56 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 2500 ● Fixed type ● Plate type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Urethane (with B)
