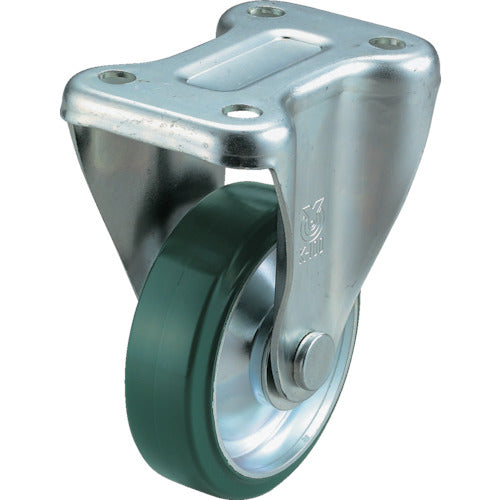

YUEI Plate-type Fixed Caster Urethane Wheel diameter 150mm J type K type Mounting dimensions 100 x 56 UWK-150 1 piece

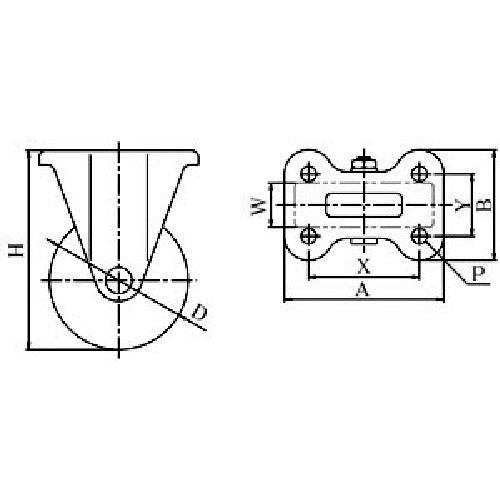

Catalogue number: UWK-150 Features: ● A standard large caster widely used for transporting heavy objects. Applications: ● Ideal for carts and wagons. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type ● Allowable load (daN): 300 ● Allowable load (kgf): 306 ● Wheel width (mm): 38 ● Mounting height H (mm): 198 ● Mounting seat A (mm): 137 ● Mounting seat B (mm): 93 ● Mounting pitch X (mm): 100 ● Mounting pitch Y (mm): 56 ● Mounting hole diameter P (mm): 11 ● Allowable load (N): 3000 ● Plate type ● With bearings ● Fixed type Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Steel wheels, urethane
