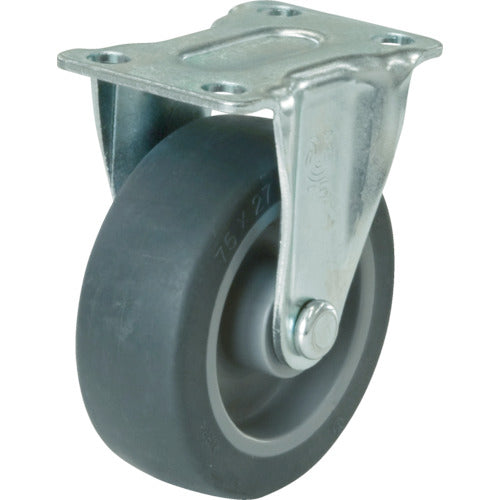

YUEI Plate-type Fixed Caster Elastomer Wheel diameter 50mm G type GR type Mounting dimensions 45 x 25 GR-50EL 1 piece

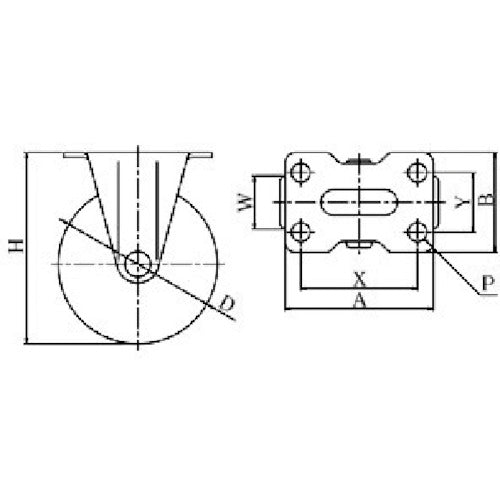

Catalogue number: GR-50EL Features: ●Standard small caster. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily soil the floor surface. Uses: ●Lightweight trolley Specifications: ●Wheel diameter D (mm): 50 ●Type: Fixed type ●Allowable load (daN): 25 ●Allowable load (kgf): 25.5 ●Wheel width (mm): 20 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 58 ●Mounting seat B (mm): 40 ●Mounting pitch X (mm): 45 ●Mounting pitch Y (mm): 25 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 250 ●Plate type ●Fixed type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
