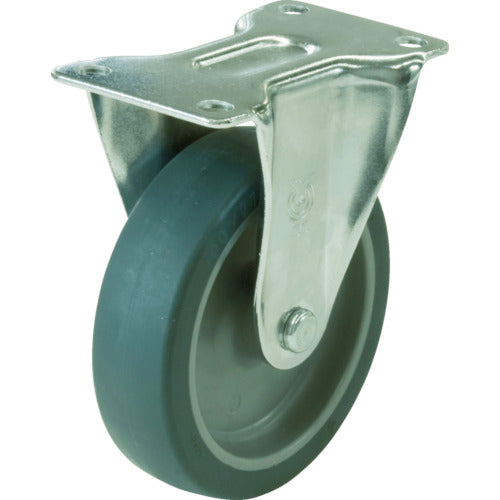

YUEI Plate-type Fixed Caster Elastomer Wheel diameter 65mm E type ER type Mounting dimensions 56 x 28 ER-65EL 1 piece

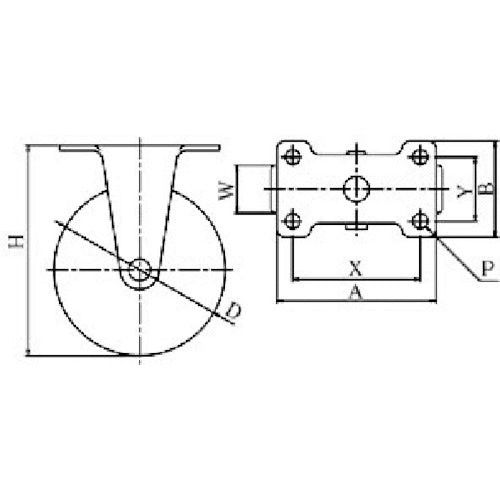

Catalogue number: ER-65EL Features: ●Luxurious chrome-plated finish. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily stain the floor surface. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 65 ●Type: Fixed type ●Allowable load (daN): 30 ●Allowable load (kgf): 30.6 ●Wheel width (mm): 21 ●Mounting height H (mm): 82 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 42 ●Mounting pitch X (mm): 56 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 300 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer ●Metal fittings surface treatment: Chrome plating finish ●Wheels: Elastomer
