YUEI Plate-type Fixed Caster, Gray Rubber, Wheel Diameter 150mm, J Type, K2 Type, Mounting Dimensions 80x80 (75x75) NWRK2-150-G 1 pc

YUEI Plate-type Fixed Caster, Gray Rubber, Wheel Diameter 150mm, J Type, K2 Type, Mounting Dimensions 80x80 (75x75) NWRK2-150-G 1 pc

JAN：4562182576989 　
caster Hardware and building materials Plate Type Rubber Caster Plate-type rubber wheels YUEI Industrial Casters
¥1,937
¥1,937
Sale Sold out
Shipping calculated at checkout.

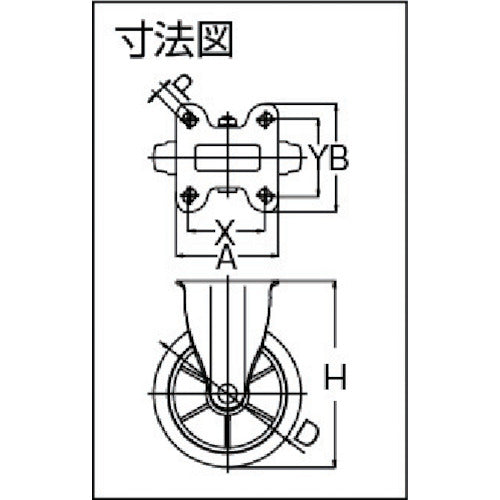

Catalogue number: NWRK2-150-G Features: ● The mounting pitch is the same for free-mounting, free-mounting with stopper, and fixed types. ● Uses gray wheels that do not easily soil the floor surface. Applications: ● Roll box pallets, dollies. Specifications: ● Wheel diameter D (mm): 150 ● Type: Fixed type ● Allowable load (daN): 160 ● Allowable load (kgf): 163.2 ● Wheel width (mm): 34 ● Mounting height H (mm): 190 ● Mounting seat A (mm): 104 ● Mounting seat B (mm): 110 ● Mounting pitch X (mm): 80-75 ● Mounting pitch Y (mm): 80-75 ● Mounting hole diameter P (mm): 11 ● Fixed type ● Plate type ● Radial bearing included Material/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Nylon wheels, rubber
