YUEI Plate Type Fixed Caster Rubber Wheel Diameter 250mm J Type K Type Mounting Dimensions 140x80 AWK-250 1 pc

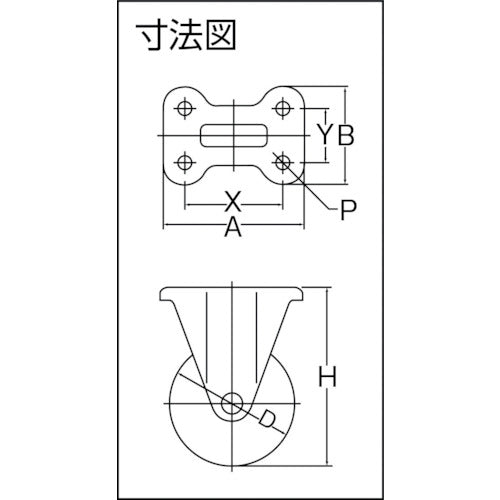

Catalogue number: AWK-250 Features: ● A standard large caster, widely used for transporting heavy objects. ● Reduces shock during travel. Applications: ● For transporting heavy objects. Specifications: ● Wheel diameter D (mm): 250 ● Type: Fixed type ● Allowable load (daN): 400 ● Allowable load (kgf): 408 ● Wheel width (mm): 60 ● Mounting height H (mm): 305 ● Mounting seat A (mm): 200 ● Mounting seat B (mm): 140 ● Mounting pitch X (mm): 140 ● Mounting pitch Y (mm): 80 ● Mounting hole diameter P (mm): 14.0 ● Plate type ● Fixed type ● With bearings Materials/Finish: ● Metal fittings: Steel ● Metal fittings surface treatment: Trivalent chromium finish ● Wheels: Aluminum wheels, rubber
