YUEI Plate-type Fixed Stainless Steel Caster Urethane Wheel Diameter 50mm S-type SUS-SR Type Mounting Dimensions 55 x 28 SUS-SR-50UR 1 pc

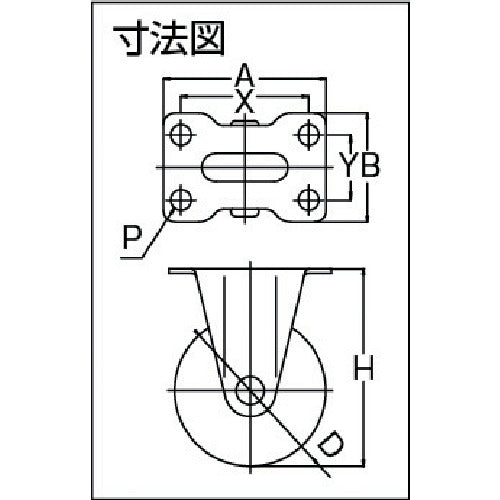

Catalogue number: SUS-SR-50UR Features: ● All-stainless steel fittings are used, which have excellent water resistance and corrosion resistance. ● Small casters with excellent maneuverability and load capacity. ● Ideal for places where food, medicines, etc. are handled, such as around water or where rust is unacceptable. Applications: ● All-stainless steel food carts, medicine carts, wagons. Specifications: ● Wheel diameter D (mm): 50 ● Type: Fixed type ● Allowable load (daN): 60 ● Allowable load (kgf): 61.2 ● Wheel width (mm): 25 ● Mounting height H (mm): 70 ● Mounting seat A (mm): 70 ● Mounting seat B (mm): 47 ● Mounting pitch X (mm): 55 ● Mounting pitch Y (mm): 28 ● Mounting hole diameter P (mm): 8.8 ● Allowable load (N): 600 ● Fixed type Materials/Finish: ● Fittings: Stainless steel (SUS304) ● Wheels: Nylon wheel, urethane
