YUEI Plate-type fixed low-floor caster, reinforced nylon, wheel diameter 50 mm, H type, HR type, mounting dimensions 66 x 36, HR-50GNB, 1 piece

YUEI Plate-type fixed low-floor caster, reinforced nylon, wheel diameter 50 mm, H type, HR type, mounting dimensions 66 x 36, HR-50GNB, 1 piece

JAN：4562182572509 　
caster Hardware and building materials Low-floor casters Plate-type low-floor casters (nylon wheels) Yuei Special Caster
¥1,673
¥1,673
Sale Sold out
Shipping calculated at checkout.

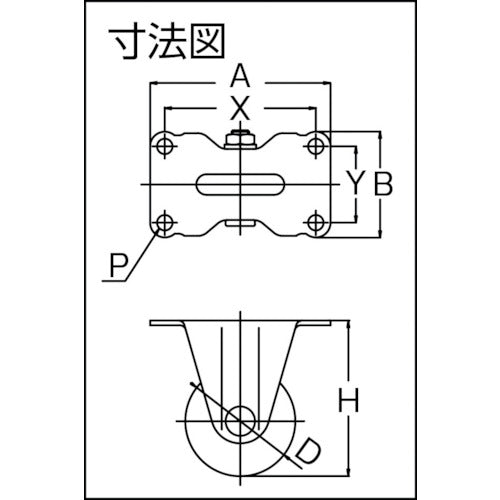

Catalogue number: HR-50GNB Features: ●A heavy-duty caster with a low mounting height. ●Prevents wheel deformation due to long-term heavy loads. Applications: ●Ideal for transporting and installing machinery and equipment. Specifications: ●Wheel diameter D (mm): 50 ●Type: Fixed type ●Allowable load (daN): 160 ●Allowable load (kgf): 163.2 ●Wheel width (mm): 28 ●Mounting height H (mm): 68 ●Mounting seat A (mm): 80 ●Mounting seat B (mm): 50 ●Mounting pitch X (mm): 66 ●Mounting pitch Y (mm): 36 ●Mounting hole diameter P (mm): 6.5 ●Allowable load (N): 1600 ●Fixed type ●Plate type ●Axle bearing: None Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Reinforced nylon
