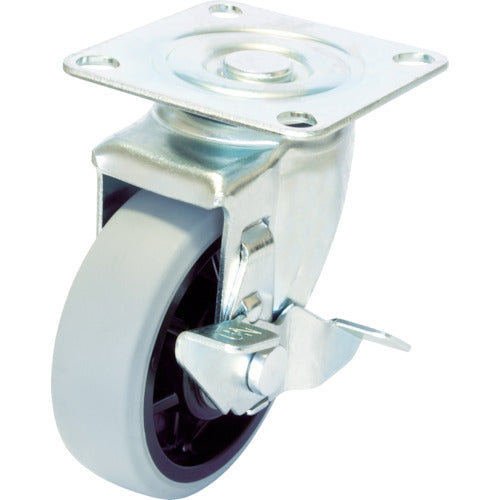

YUEI Plate-type Swivel Caster Urethane Wheel Diameter 100mm With Stopper J Type SJ-S Model Mounting Dimensions 71 x 71 (68 x 68) SJ-100GUS 1 pc

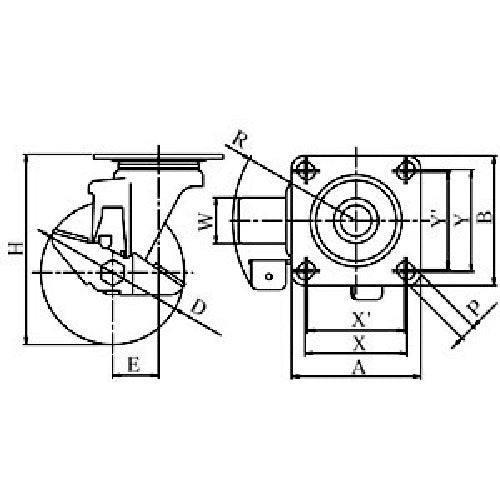

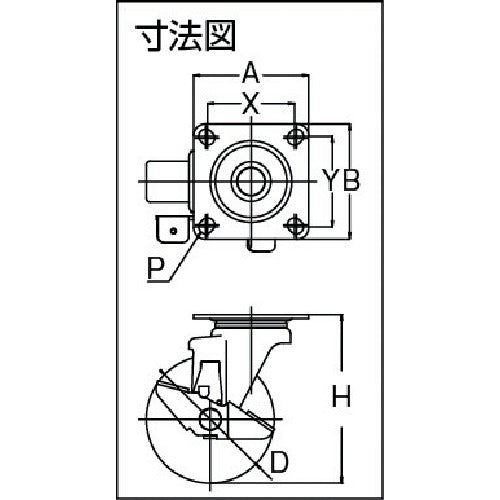

Catalog number: SJ-100GUS Features: ●Standard medium-sized caster widely used for transporting heavy objects. ●Lightweight nylon wheel urethane wheel with excellent oil resistance and abrasion resistance. ●Urethane wheels have excellent oil resistance and abrasion resistance. Applications: ●Roll box pallets, hand trucks. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel type (with stopper) ●Allowable load (daN): 100 ●Allowable load (kgf): 102 ●Wheel width (mm): 32 ●Mounting height H (mm): 132 ●Mounting seat A (mm): 90 ●Mounting seat B (mm): 90 ●Mounting pitch X (mm): 68-71 ●Mounting pitch Y (mm): 68-71 ●Mounting hole diameter P (mm): 11 ●Allowable load (N): 1000 ●Swivel type (with stopper) ●Plate type ●Bearing included Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Nylon wheels, urethane
