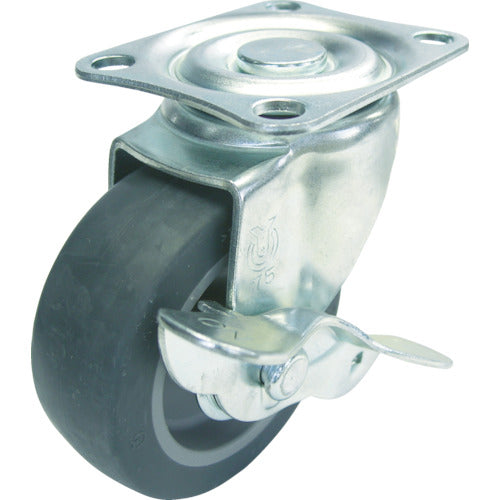

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 100mm With stopper S-type SG-S type Mounting dimensions 82 x 40 SG-100ELS 1 piece

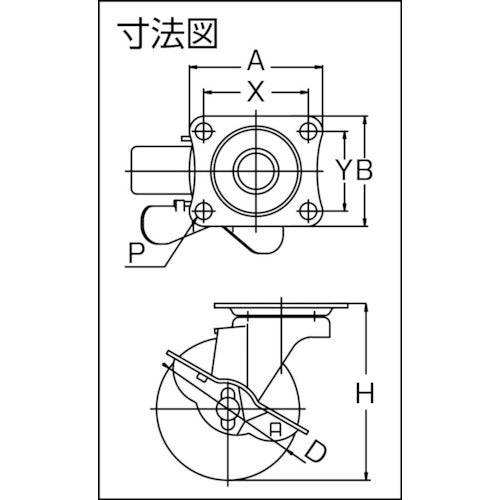

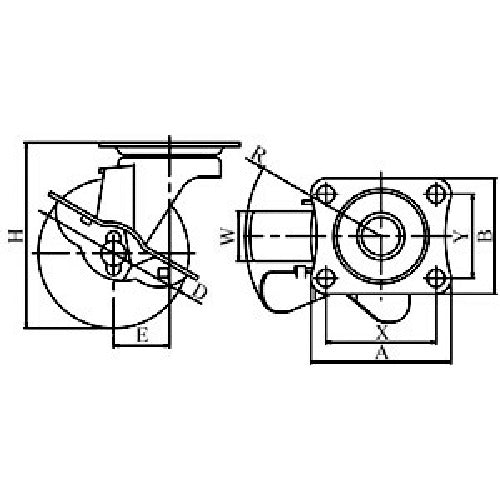

Catalogue number: SG-100ELS Features: ●Standard small caster with excellent running performance and load capacity. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily stain the floor surface. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 100 ●Type: Free-wheeling (with stopper) ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 27 ●Mounting height H (mm): 122 ●Mounting seat A (mm): 100 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 82 ●Mounting pitch Y (mm): 40 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 500 ●Plate type ●Free-wheeling (with stopper) Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
