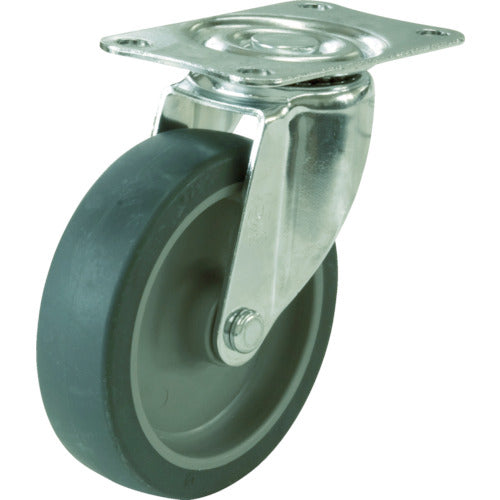

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 50mm E-type E-type Mounting dimensions 56 x 28 E-50EL 1 pc

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 50mm E-type E-type Mounting dimensions 56 x 28 E-50EL 1 pc

JAN：4562182578518 　
caster Hardware and building materials Plate type elastomer caster Plate-type resin car YUEI Light Duty Casters
¥364
¥364
Sale Sold out
Shipping calculated at checkout.

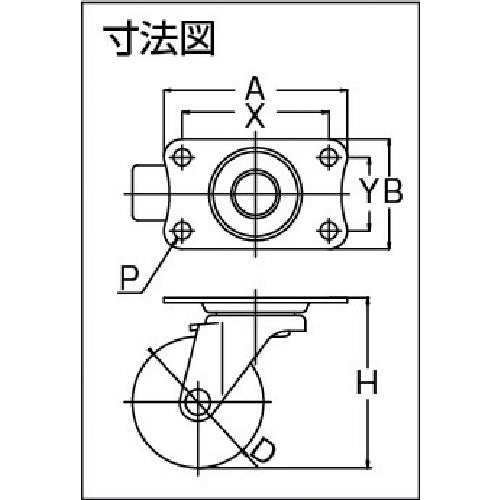

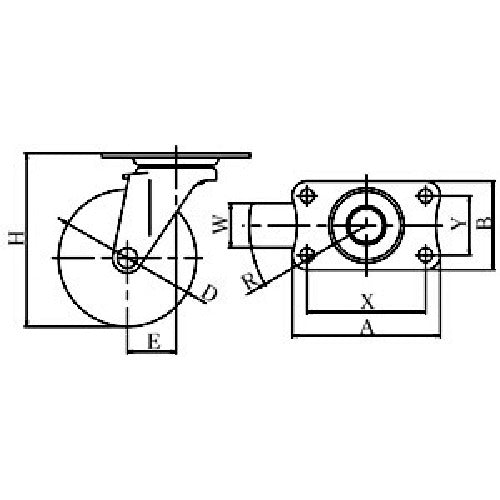

Catalogue number: E-50EL Features: ●Luxurious chrome-plated finish. ●Material does not easily mark floor surfaces. ●Uses elastomer wheels that do not easily soil floor surfaces. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 50 ●Type: Swivel ●Allowable load (daN): 25 ●Allowable load (kgf): 25.5 ●Wheel width (mm): 20 ●Mounting height H (mm): 65 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 42 ●Mounting pitch X (mm): 56 ●Mounting pitch Y (mm): 28 ●Mounting hole diameter P (mm): 6.5 ●Swivel ●Plate type Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Chrome-plated finish ●Wheels: Elastomer
