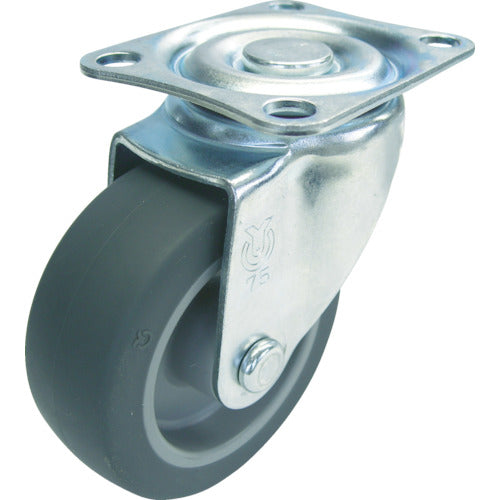

YUEI Plate-type Swivel Caster Elastomer Wheel diameter 75mm S-type SG-type Mounting dimensions 55 x 42 SG-75EL 1 pc

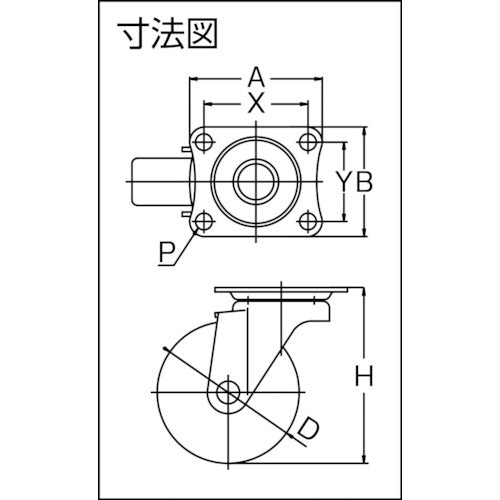

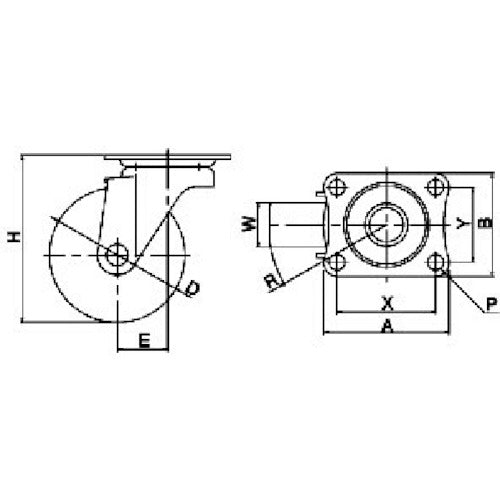

Catalogue number: SG-75EL Features: ●Standard small caster with excellent running performance and load capacity. ●Material does not easily mark the floor surface. ●Uses elastomer wheels that do not easily stain the floor surface. Applications: ●For carts, furniture, and fixtures. Specifications: ●Wheel diameter D (mm): 75 ●Type: Swivel ●Allowable load (daN): 50 ●Allowable load (kgf): 51 ●Wheel width (mm): 27 ●Mounting height H (mm): 93 ●Mounting seat A (mm): 70 ●Mounting seat B (mm): 58 ●Mounting pitch X (mm): 55 ●Mounting pitch Y (mm): 42 ●Mounting hole diameter P (mm): 8.8 ●Allowable load (N): 500 ●Plate type ●Swivel type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer ●Metal fittings surface treatment: Trivalent chromium finish ●Wheels: Elastomer
